279-06051
SKU: 279-06051

$3,064.28

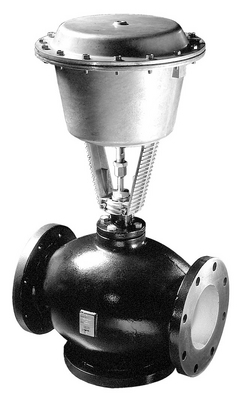

Siemens 3″ Valve 2W Flange 100Cv NC Linear Flow ANSI Class 125 Cast Iron Body with Stainless Steel Trim with High Temperature Packing and 12″ Pneumatic Actuator with 5 PSI Spring Span (Adjustable Spring Range)

Shipment date to be confirmed

SKU: 279-06051 Tag: Brand:

Description

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with 3/4-inch stroke and 5 psi span. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.

Additional information

Weight 5.0 lbs
Dimensions 11 × 11 × 11 in
