281-06052
SKU: 281-06052

$3,530.48

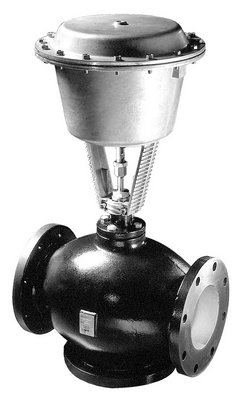

Siemens 4″ Valve Assembly 2W NC Flange 160Cv Linear Flow ANSI Class 125 Cast Iron Body with Stainless Steel Trim with High Temperature Packing and 12″ Pneumatic Actuator with 5 PSI Spring Span (Adjustable Spring Range)

Shipment date to be confirmed

SKU: 281-06052 Tag: Brand:

Description

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with 1-1/2-inch stroke and 5 psi span. The 2-way, normally closed, 4-inch, 160 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.

Additional information

Weight 199.0 lbs
Dimensions 11 × 11 × 11 in
